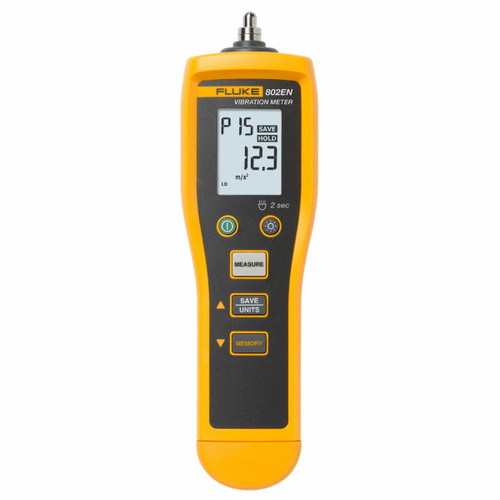

Fluke 802EN - Vibration Meter

MPN: FLUKE-802EN SKU: 1164874
$2,320.00
Adding to cart… The item has been added

free shippingShipping Quote

(No reviews yet) Write a Review
Details

The Fluke 802EN Vibration Meter reaches the highest standards in terms of repeatability and test accuracy in the industry, which is certified by Certified Management Consultant (CMC). Make go or no-go predictive maintenance decisions with confidence. The Fluke 802EN Vibration Meter allows you to easily assess the state of in-service equipment and determine whether maintenance is required. With only one button you can switch between displacement, velocity, and acceleration measurements.

Includes

  • Two (2) AAA batteries
  • Soft Case
  • User Manual

Features

  • Three test modes to meet complex test environment in industrial field
  • High repeatability to ensure accuracy of continuous testing
  • One-button measurement to get assessment result in 6 seconds
  • 99 sets of data storage, review in real-time

Specifications

  • Battery: 2 AAA, IEC LR03
  • Battery life: 25 hrs for measurement
  • Dimensions (L x W x H): 24.1 x 7.1 x 5.8 cm
  • Weight    : 220 g
  • Audio port: Stereo audio output jack (3.5 mm Audio Plug)
  • External sensor port: M12 plug

Accuracy Specifications

  • Internal Piezoelectric Accelerometer
    • Sensitivity (typical): 10.00 mV / m/s² ± 5% (1 g = 9.8 m/s²)
  • Acceleration
    • Range: 0.1 m/s² to 199.9 m/s² peak (rms √2)
    • Resolution: 0.1 m/s²
    • Accuracy:
      • (10 Hz to 1 kHz): ±(5% + 2 dgt)
      • (1 kHz to 10 kHz): ±(10% + 5 dgt)
  • Velocity
    • Range: 0.1 mm/s to 199.9 mm/s rms
    • Resolution: 0.1 mm/s
    • Accuracy (10 Hz to 1 kHz): ±(5% + 2 dgt)
  • Displacement
    • Range: 0.001 mm to 1.999 mm peak-peak (rms √2)
    • Resolution: 0.001 mm
    • Accuracy (10 Hz to 1 kHz): ±(5% + 2 dgt)
  • Frequency Response
    • Internal piezoelectric accelerometer: 10 Hz to 15 kHz
  • Amplitude Units
    • Acceleration: g, m/s²
    • Velocity: mm/s
    • Displacement: mm
  • External Piezoelectric Accelerometer
    • DC bias voltage: 6 V dc to 7 V dc
    • DC bias current: 3.5 mA
  • Environmental
    • Operating temperature: -10°C to 50°C
    • Storage temperature: -30°C to 60°C
    • Operating humidity: 30% to 90% RH (non-condensing)
    • Operating altitude: 2,000 m
    • Storage altitude: 12,000 m
    • Ingress protection: IP40
    • Vibration limit: 500.0 m/s² peak
    • Drop test: 1 m
  • Compliance
    • Electromagnetic compatibility (EMC): IEC 61326-1, CISPR 11 Group 1 Class A
