Cabac T1800 - Resistance Tester - Analog Mega Installation
Details

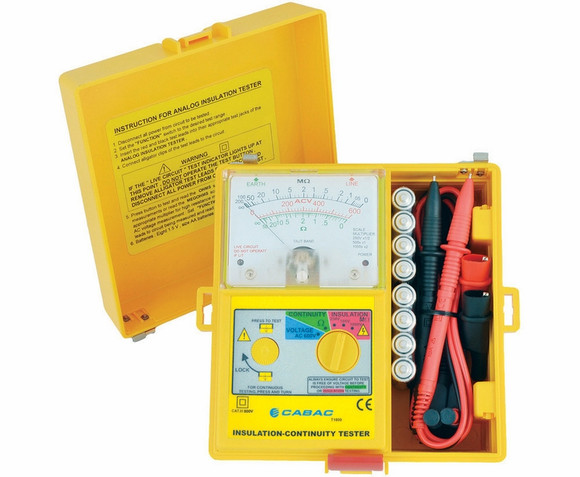

T1800 Analogue Insulation Tester
A good quality general purpose analogue insulation tester packed in a compact casing. The display is clearly laid out and the operating panel is colour coded. The casing has a compartment on one side for packing leads and accessories. The unit is equipped with a lock down operating button. Ideal for testing an installation for continuity, AC voltage and insulation at voltages 250, 500, and 1000 V. The cover can be removed and the unit easily operated with a shoulder strap that leaves the hand free to hold the leads. The batteries are accessed in a compartment under the meter.
- Automatic Circuit Discharge
- Colour Coded Scale
- Lock down Push Button
- Fuse Protected
- Compact Rugged Case
- Alternating voltage measurements
- Live Line Indication
- Battery Check
- Safety and Compliance: IEC61010 CAT III 500V, Pollution Degree 2. CE
| Feature | Range | Current Output |
Accuracy |
| Insulation | 0 to 100MΩ 0 to 200MΩ 0 to 400MΩ |
250V DC ± 10% 500V DC ± 10% 1000V DC ± 10% |
± 5% |
| Continuity | ± 0 ~ 50Ω | 240mA | ± 5% of scale length |
| AC Voltage | 0 to 600 V AC (Frequency 40 to 1kHz) | ± 2.5 % of F.S. | |
| Power Consumption | 190mA | ||
| Short Circuit Terminal Current |
2mA | ||
Current consumption
- Insulation Short Circuit Current: 190mA
- Continuity test short circuit current: 120mA
The unit is supplied in a compact, rugged case with batteries, spare fuse, leads and crocodile clips, manual and shoulder strap.
- Batteries: 8 x 1.5 V size AA
- Fuse: 1A/250V 5 x 20
- Size: 170 x 165 x 92mm
- Weight: 970g with Batteries
