Austlift 406010 - Turnbuckle Grade P Galvanised Jaw - 10mm
MPN: 406010
SKU: 1162086
$11.95
(No reviews yet)
Write a Review
Write a Review
Austlift

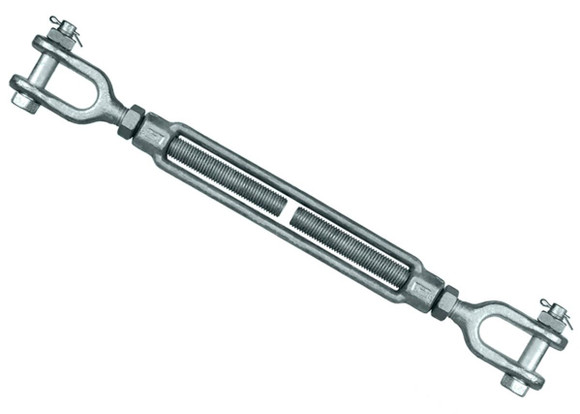

Austlift 406010 - Turnbuckle Grade P Galvanised Jaw - 10mm
Details
Features
- Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.
- Manufactured from Grade P high tensile material quenched and tempered hot dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with lock nuts.
- Meets the design requirements of ASTM F1145:2017.
- Proof tested to 2 x WLL and minimum break force is 5 x WLL.
- Suitable for industrial lifting purposes.
- The actual sizes of thread are whitworth.
Specifications
- Size: 10mm (3/8")
- WLL: 054T
- Wt: 0.37kg

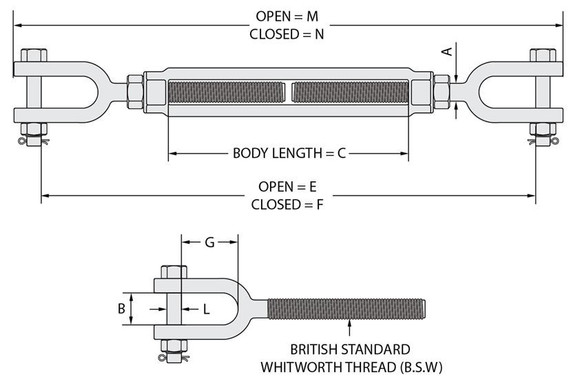

- Dimensions
- A: 9.65mm
- B: 12.7mm
- C: 152mm
- E: 410mm
- F: 258mm
- G: 22.1mm
- M: 441mm
- N: 289mm
- L: 8mm
