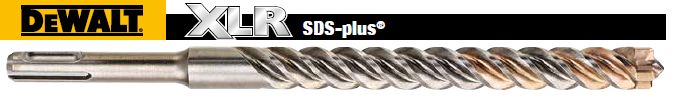

SDS Plus Drills - 4 Cutter XLR

Diameter (mm)	OAL (mm)	Working Length (mm)	Item #
5	110	50	DT8907-QZ
5	160	100	DT8908-QZ
5.5	110	50	DT8910-QZ
5.5	160	100	DT8911-QZ
6	110	50	DT8912-QZ
6	160	100	DT8913-QZ
6	210	150	DT8914-QZ
6.5	160	100	DT8916-QZ
6.5	210	150	DT8917-QZ
7	160	100	DT8920-QZ
7	210	150	DT8921-QZ
8	110	50	DT8922-QZ
8	160	100	DT8923-QZ
8	210	150	DT8924-QZ
8	260	200	DT8925-QZ
10	160	100	DT8928-QZ
10	210	150	DT8929-QZ
10	260	200	DT8930-QZ
12	160	100	DT8933-QZ
12	200	150	DT8934-QZ
12	260	200	DT8935-QZ
14	200	150	DT8939-QZ
14	260	200	DT8940-QZ

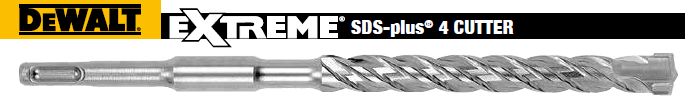

SDS Plus Drills - 4 Cutter Extreme

Diameter (mm)	OAL (mm)	Working Length (mm)	Item #
16	250	200	DT9680-QZ
18	250	200	DT9682-QZ
20	250	200	DT9684-QZ
20	450	400	DT9685-QZ
22	450	400	DT9687-QZ
24	450	400	DT9689-QZ
25	450	400	DT9691-QZ
26	450	400	DT9692-QZ

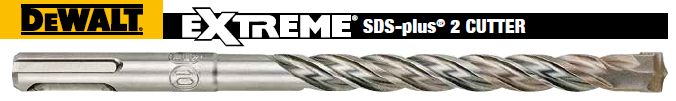

SDS Plus Drills - 2 Cutter Extreme

Diameter (mm)	OAL (mm)	Working Length (mm)	Item #
4	160	100	DT9503-QZ
5	110	50	DT9504-QZ
5	160	100	DT9505-QZ
5.5	110	50	DT9508-QZ
5.5	160	100	DT9509-QZ
6	110	50	DT9514-QZ
6	160	100	DT9515-QZ
6	210	150	DT9516-QZ
6.5	160	100	DT9520-QZ
6.5	210	150	DT9521-QZ
7	110	50	DT9524-QZ
7	160	100	DT9525-QZ
8	110	50	DT9528-QZ
8	160	100	DT9529-QZ
8	210	150	DT9530-QZ
8	260	200	DT9531-QZ
10	110	50	DT9539-QZ
10	160	100	DT9540-QZ
10	210	150	DT9541-QZ
10	260	200	DT9542-QZ
10	460	400	DT9545-QZ
12	160	100	DT9552-QZ
12	200	150	DT9553-QZ
12	260	200	DT9554-QZ
12	450	400	DT9557-QZ
13	160	100	DT9560-QZ
14	160	100	DT9566-QZ
14	200	150	DT9567-QZ
14	260	200	DT9568-QZ
14	450	400	DT9570-QZ
15	160	100	DT9573-QZ
15	260	200	DT9575-QZ
16	200	150	DT9579-QZ
16	300	250	DT9581-QZ
16	450	400	DT9582-QZ
18	200	150	DT9587-QZ
18	300	250	DT9589-QZ
18	450	400	DT9590-QZ
20	200	150	DT9597-QZ
20	300	250	DT9598-QZ
20	450	400	DT9599-QZ
22	250	200	DT9602-QZ
22	450	400	DT9604-QZ
24	250	200	DT9609-QZ
24	450	400	DT9610-QZ
25	250	200	DT9611-QZ
25	450	400	DT9613-QZ
26	250	200	DT9615-QZ
26	450	400	DT9616-QZ

SDS Max Drills

Diameter (mm)	OAL (mm)	Working Length (mm)	Cutters	Item #
12	340	190	2	DT60800-QZ
14	340	190	2	DT60805-QZ
16	340	190	4	DT60809-QZ
16	540	390	4	DT60810-QZ
18	340	190	4	DT60811-QZ
18	540	390	4	DT60812-QZ
20	340	210	4	DT60816-QZ
20	540	410	4	DT60817-QZ
22	340	210	4	DT60819-QZ
22	540	410	4	DT60820-QZ
24	340	210	4	DT60822-QZ
24	540	410	4	DT60823-QZ
25	340	210	4	DT60824-QZ
25	540	410	4	DT60825-QZ
26	340	210	4	DT60827-QZ
26	540	410	4	DT60828-QZ
28	380	250	4	DT60829-QZ
28	570	440	4	DT60830-QZ
30	380	250	4	DT60832-QZ
30	570	440	4	DT60833-QZ
32	380	250	4	DT60834-QZ
32	570	440	4	DT60835-QZ
35	570	440	4	DT60838-QZ
40	570	440	4	DT60845-QZ
